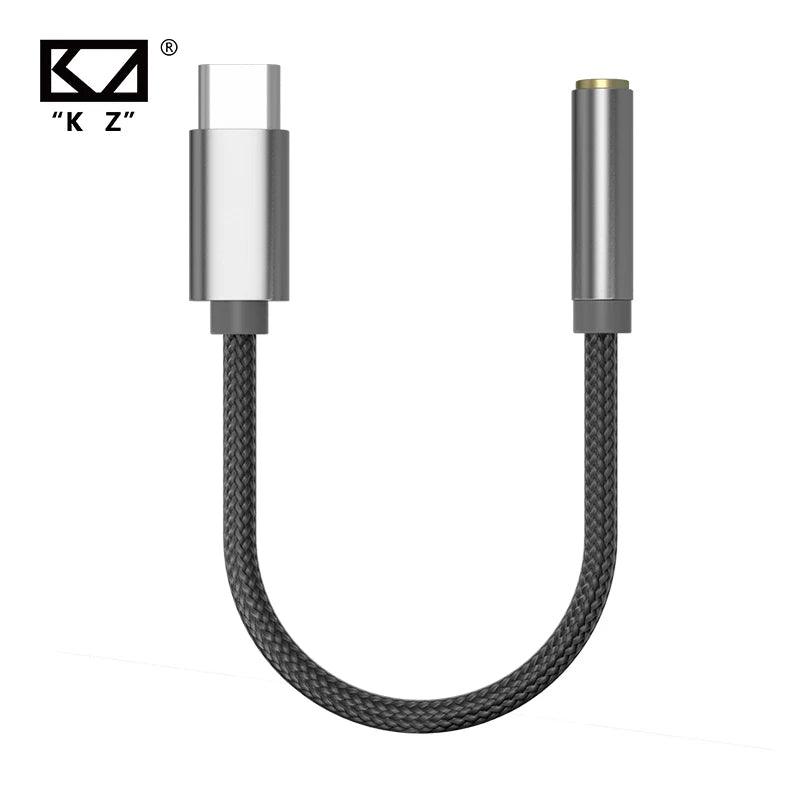

KZ AM01: KZ's First Portable Decoding Amplifier
High-Performance Independent DAC and Amplifier Chips
Experience Hi-Fi sound quality with the KZ AM01, featuring an independent DAC decoding chip and a secondary independent amplifier chip, delivering 60mW output power for superior audio performance.
☑️ Independent DAC Decoding Chip
☑️ 60mW Output Power
☑️ Secondary Independent Amplifier Chip
☑️ Hi-Fi Sound Quality
☑️ Intelligent Choice for Entry-Level Portable Decoding Amplifier
Dual Independent Chips
Unlike single-chip portable amplifiers and regular adapters, the KZ AM01 offers unparalleled performance with its dual-chip design.
| Model | Type-C to 3.5mm | DAC Decoding Chip | Independent Amplifier Chip | Output Power | Price |
|---|
| Ordinary Adapter | No | No | No | 5USD | 5USD |
| Mei*u-HA01 | Yes | Yes | No | 30mW | 13USD |
| Jcally*-m6PRO | Yes | Yes | Yes | 60mW | 15USD |
| KZ AM01 | Yes | Yes | Yes | 60mW | 13USD |
High-Performance DAC Decoding Chip
The high-performance DAC decoding chip in the KZ AM01 boasts an impressive signal-to-noise ratio of up to 124dB and a dynamic range of 111dB, ensuring precise conversion of digital signals into pure lossless audio quality.
Powerful Amplifier Chip
The MAX97220 independent amplifier chip dynamically adapts to loads within 600Ω, delivering clean and powerful audio output with minimal distortion.
High Processing Power Decoding Chip
With a PCM sampling rate of up to 32-bit/384kHz, the KZ AM01 provides a listening experience that exceeds CD audio quality.
Low Power Consumption
The KZ AM01 has an overall maximum power consumption of 575mW/h, resulting in minimal heat generation and a low impact on your playback device's battery life.
Plug-and-Play Compatibility
Compatible with most Type-C devices, the KZ AM01 is plug-and-play, requiring no complex configurations. Note: Only supports Type-C interfaces with OTG functionality.
Zero Latency
Enjoy perfect audio-visual synchronization while listening to music, watching shows, or playing games with zero latency.
Lightweight and Compact Design
The KZ AM01 features a minimalist design, Kevlar braided cables, and is easy to carry and durable.
Product Information
- Model: KZ AM01
- SNR: 110dB
- DNR: 110dB
- THD+N: -95dB
- Frequency Response: 20-20000Hz
- Impedance Range: ≥16Ω
- Output Power: 1Vrms (30mW@32Ω)
- Input: USB Type-C
- Output: 3.5mm
- Cable Length: 110±10mm
- Decoding Capability: DAC: Up to 384kHz/32bit, ADC: Up to 96kHz/24bit
