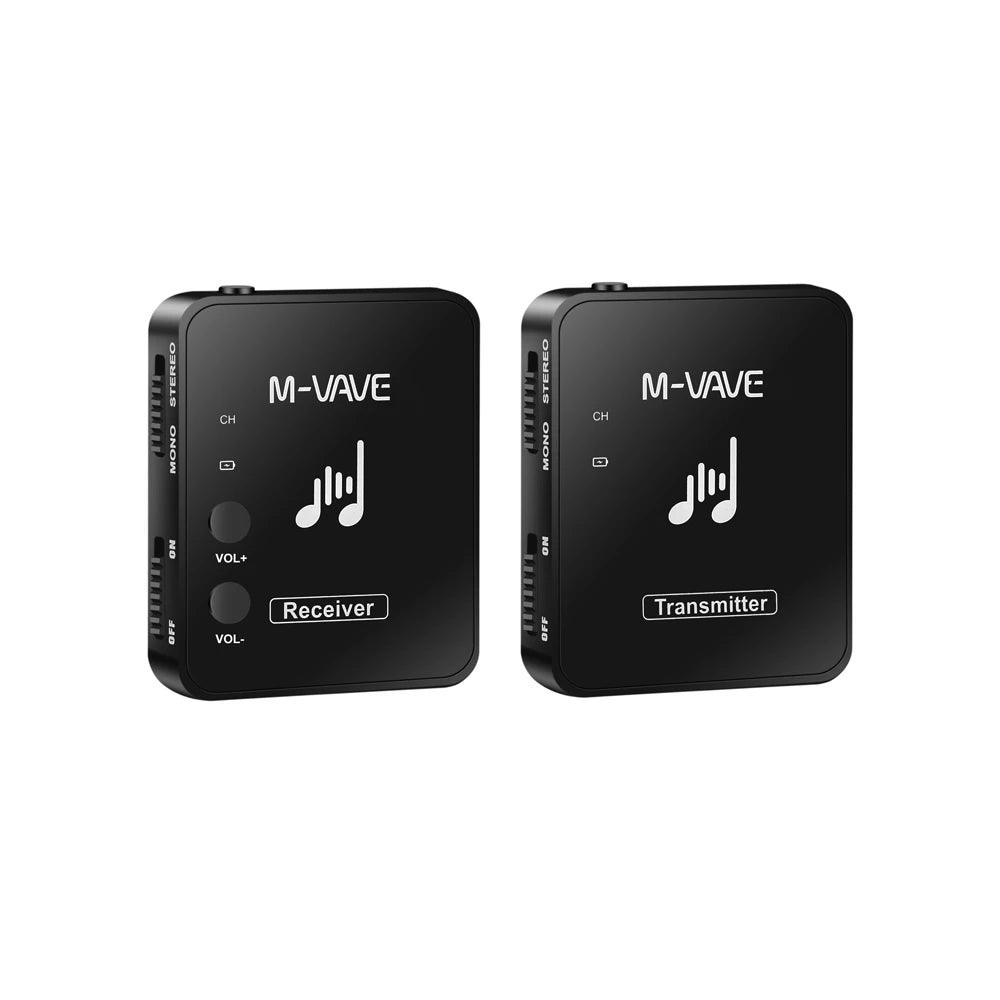

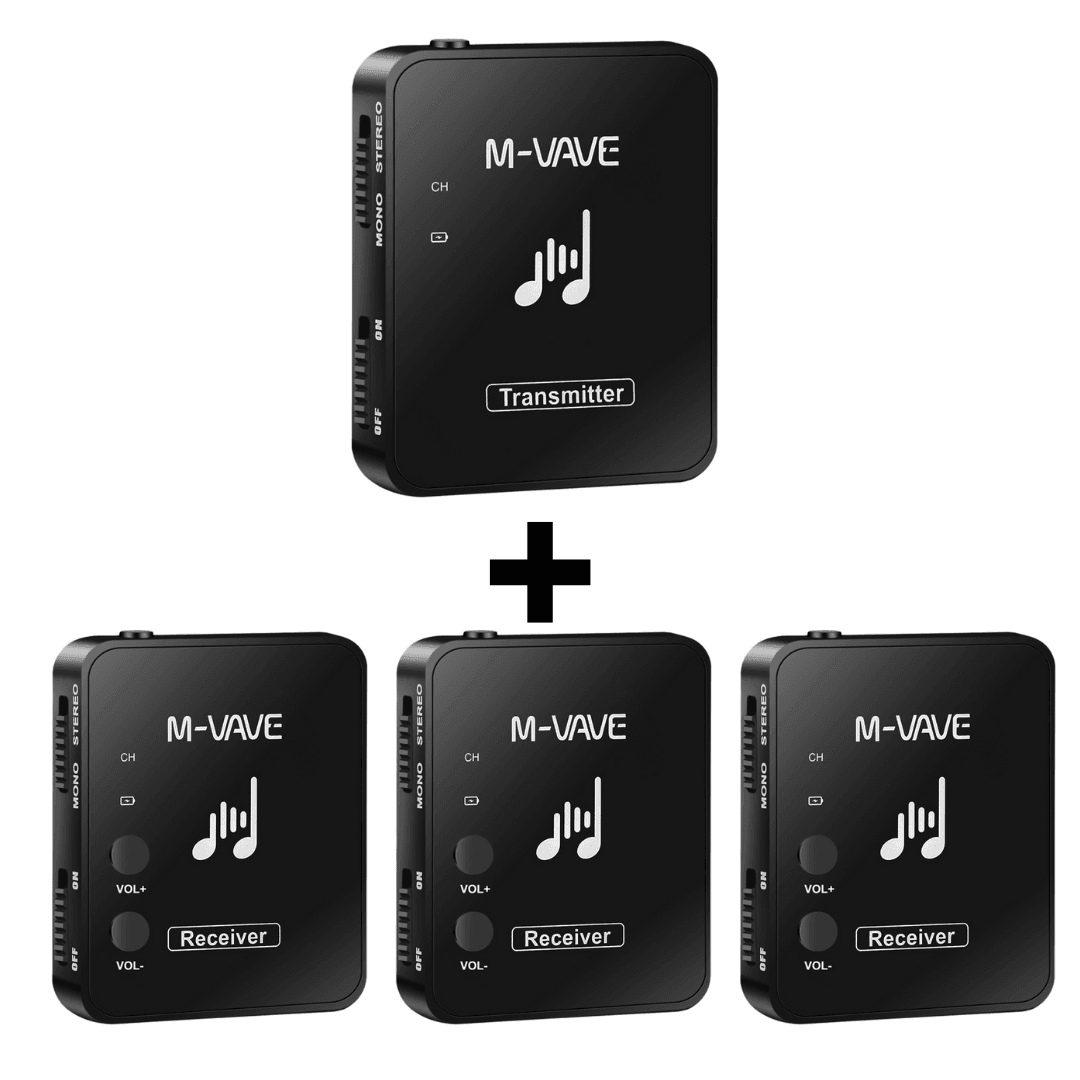

The M-Vave WP-10 redefines expectations for wireless in-ear monitor systems. Featuring a super portable and compact design, it not only impresses with its sleek and discreet aesthetic but also with its remarkable sound performance and minimal delay.

To purchase additional transmitters or receivers, click on the names below:

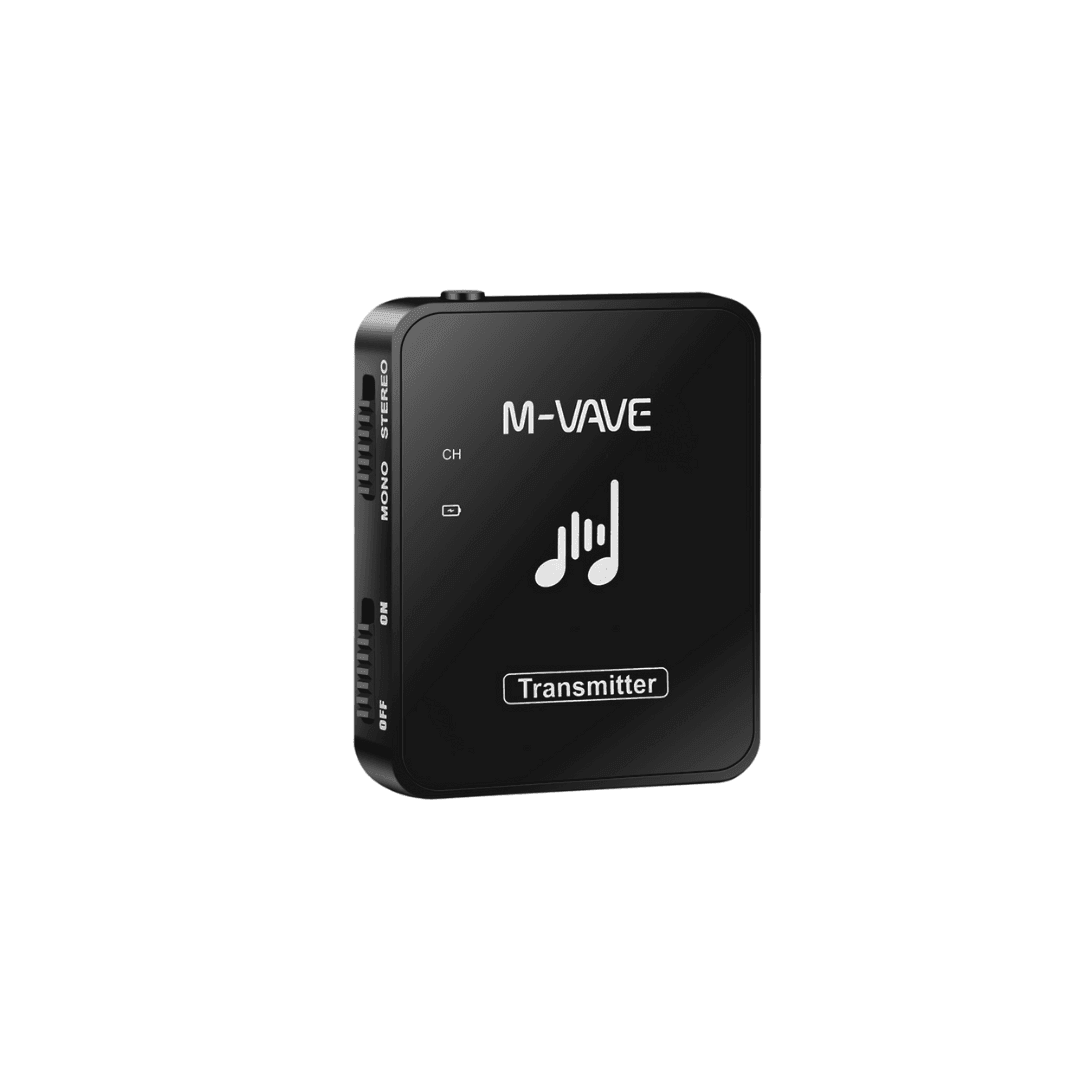

• Transmitter: Captures the signal from the soundboard and sends it to the receiver.

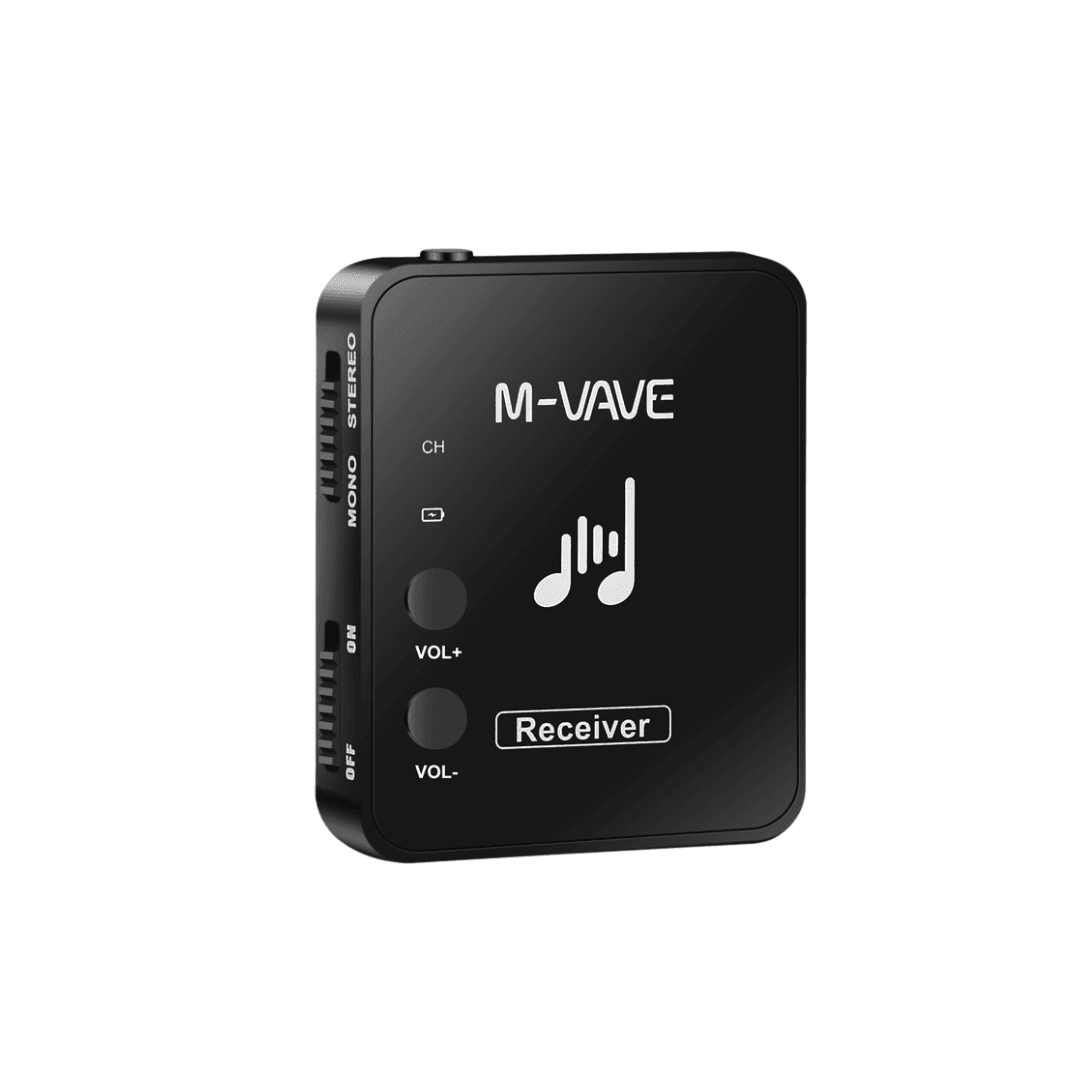

• Receiver: Receives the transmitted signal and delivers it to the musician’s in-ear monitors.

Real-Time Performance

Equipped with the latest 2.4 GHz wireless technology, the M-Vave WP-10 boasts an ultra-low latency, ensuring uncompromised performance during live shows. It supports both mono and stereo modes.

Guaranteed Sound Integrity

With high-quality transmission, reception, and decoding, the M-Vave WP-10 preserves the integrity of the original sound, transmitting without interruptions or connection failures. Additionally, it offers compatibility with phone connections, making recording convenient.

Features

• Professional Sound Quality: Despite its compact size, it offers lossless sound quality with low noise, minimal latency, and excellent resolution.
• Wireless Transmission: Operates on the 2.4GHz frequency band with a 24-bit/48kHz sampling rate.

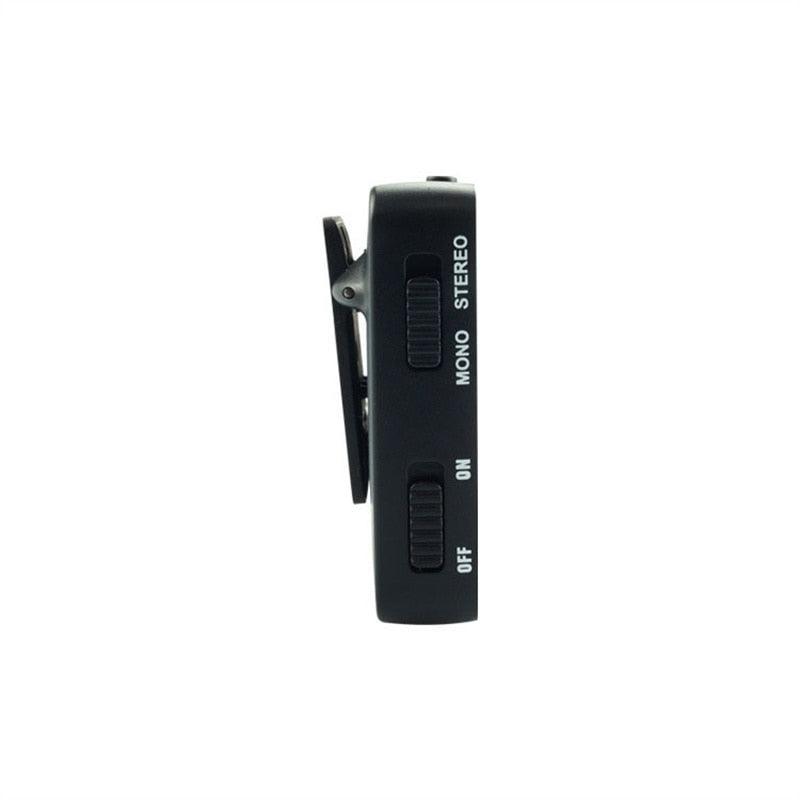

• Mono and Stereo Modes: Easily switch between modes to suit different devices with a simple button.
• Rechargeable Battery: Built-in lithium-ion battery, rechargeable via USB.

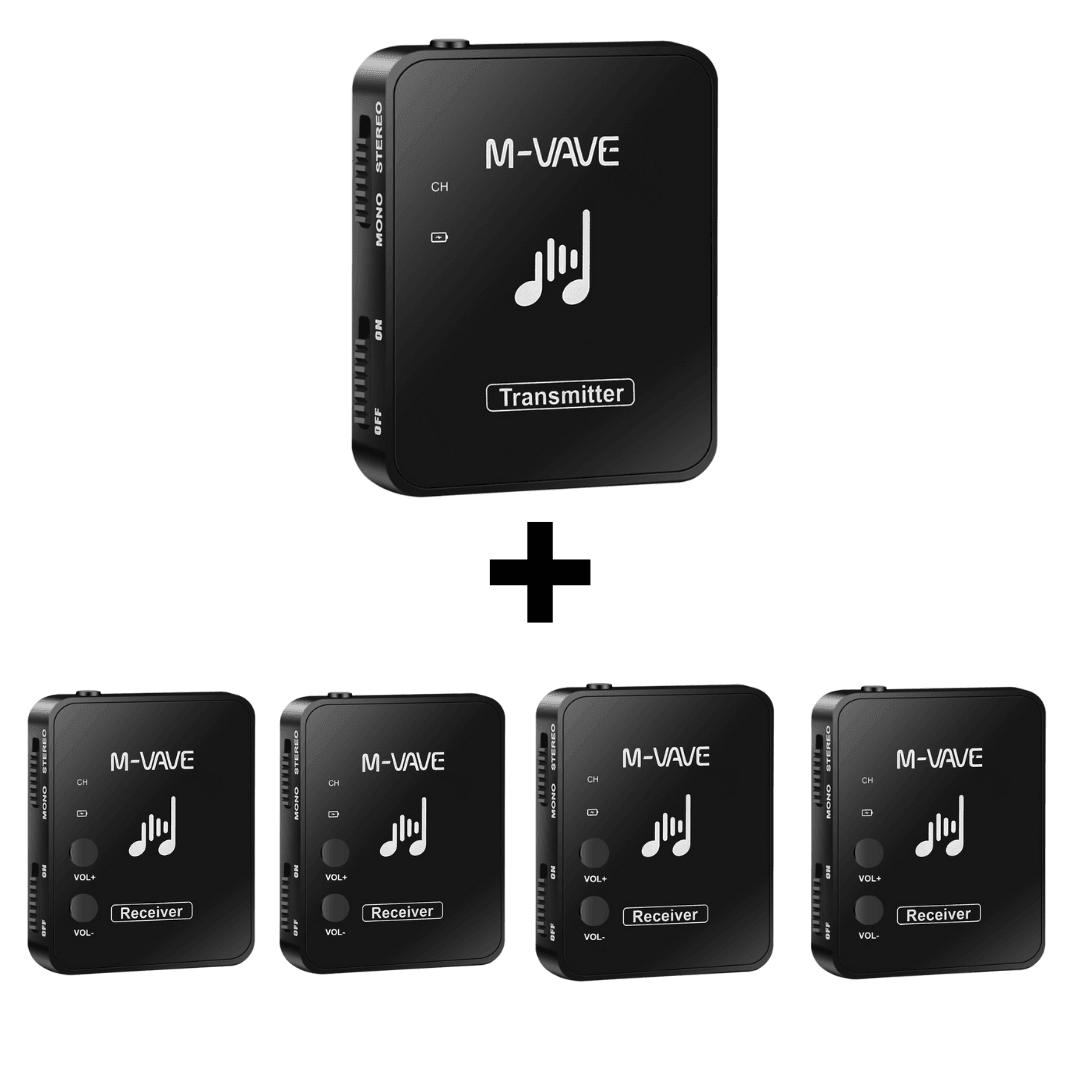

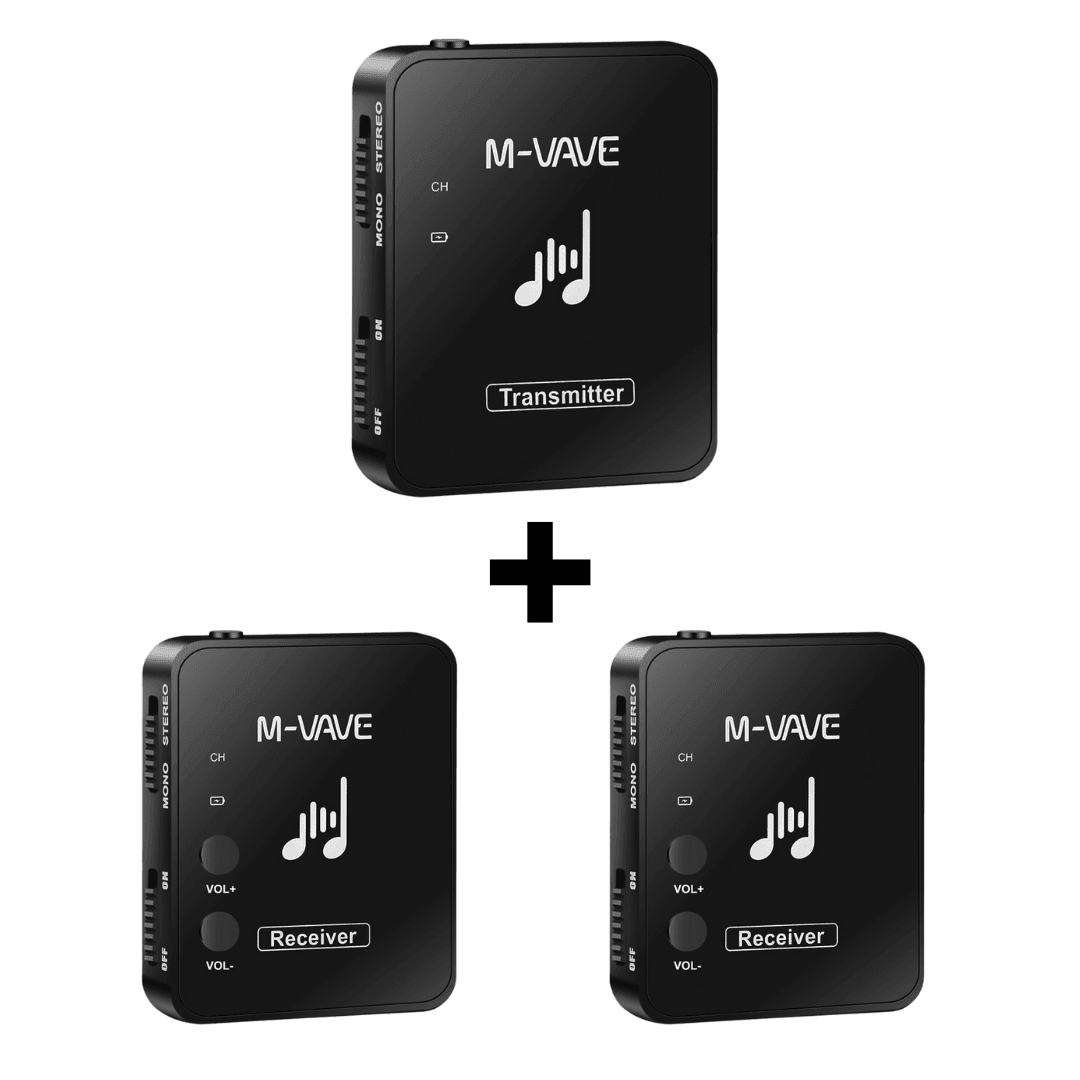

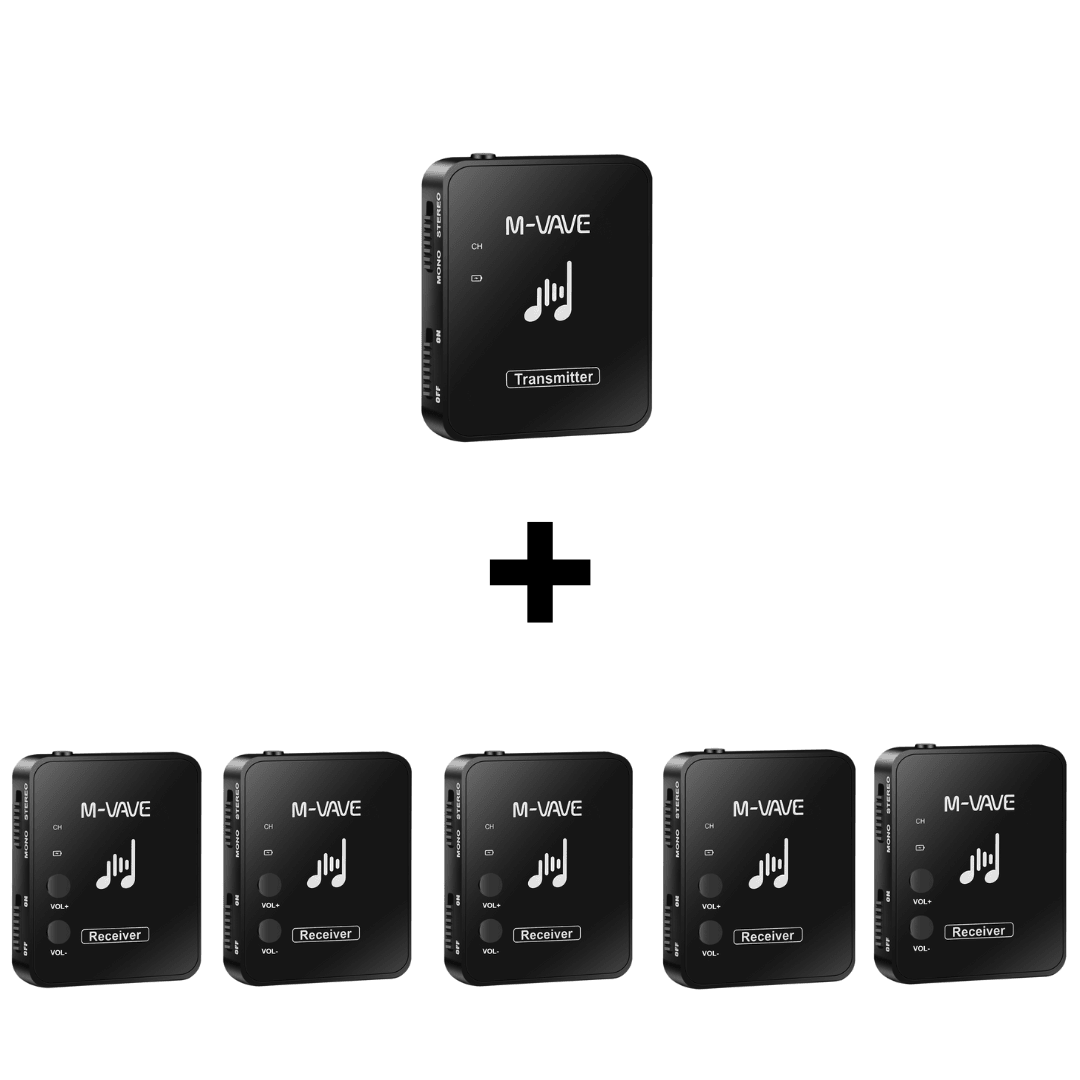

• Simultaneous Operation: Supports up to 5 sets of equipment operating simultaneously.

Specifications

• Material: ABS
• Sampling Rate: 24-bit/48kHz digital transmission
• Transmission Frequency: 2.4GHz
• Latency: < 12ms
• Range: Up to 30 meters in open spaces, 15 meters with walls
• Battery Capacity: 550mAh
• Charging Method: USB cable
• Signal-to-Noise Ratio: -98dB
• Dynamic Range: >105dB
• Frequency Response: 20Hz to 20kHz, with a variation of +1dB/-3dB
• Product Dimensions: 54x45x13mm
• Product Weight: 31g
• Package Weight: 89g
• Package Dimensions: 74x60x38mm

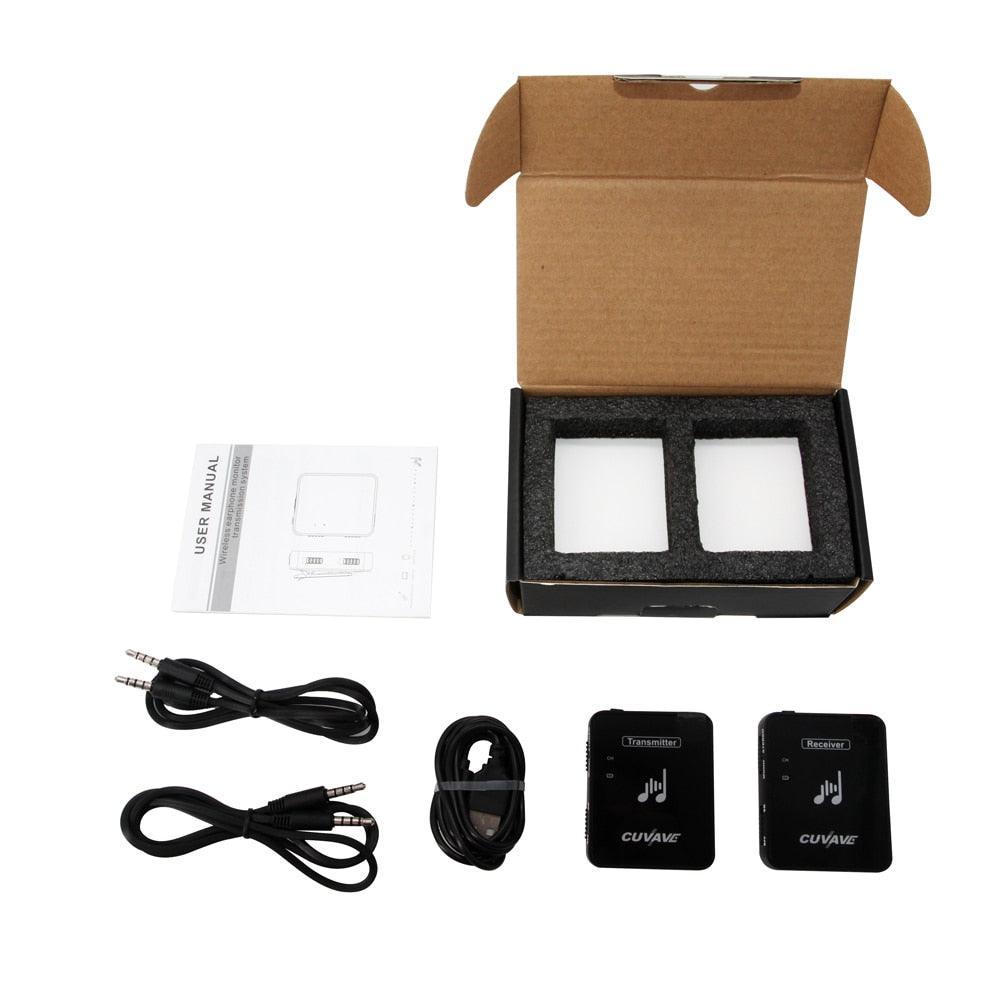

Receiver Package Contents

• 1 Receiver
• 1 Charging Cable
• 1 Audio Cable
• 1 English Manual

Transmitter Package Contents

• 1 Transmitter
• 1 Charging Cable
• 1 Audio Cable
• 1 English Manual

How to Use the M-VAVE WP10:

1. Connect the transmitter to the output of your sound mixer. It features a 3.5mm (P2) input and includes a 3.5mm to 3.5mm cable for easy setup.
2. The receiver, worn by the musician, plugs directly into their headphones, allowing for convenient and wireless monitoring.
3. For stereo sound, use a (sold separately) to connect the transmitter directly to your mixer’s XLR output.

How the M-VAVE WP10 Works:

• The transmitter connects to your mixer and sends the audio signal wirelessly.
• The receiver, worn by the musician, picks up the transmitted signal and delivers it directly to their headphones.

This system ensures high-quality, cable-free sound with the freedom to move around the stage. Perfect for musicians who value convenience and professional performance!
